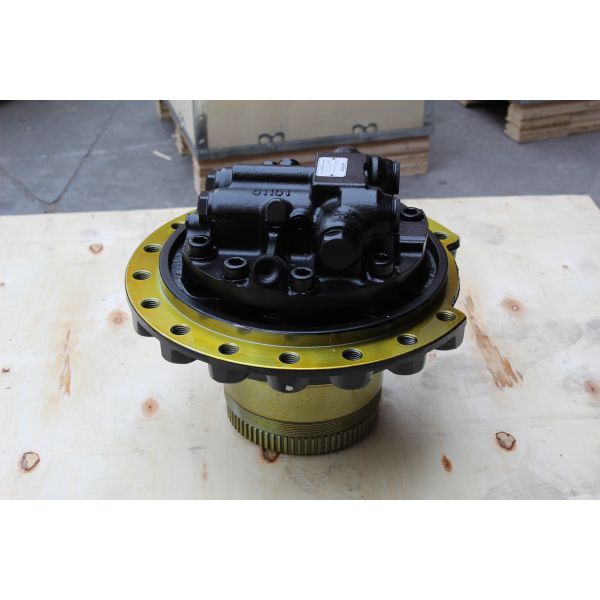

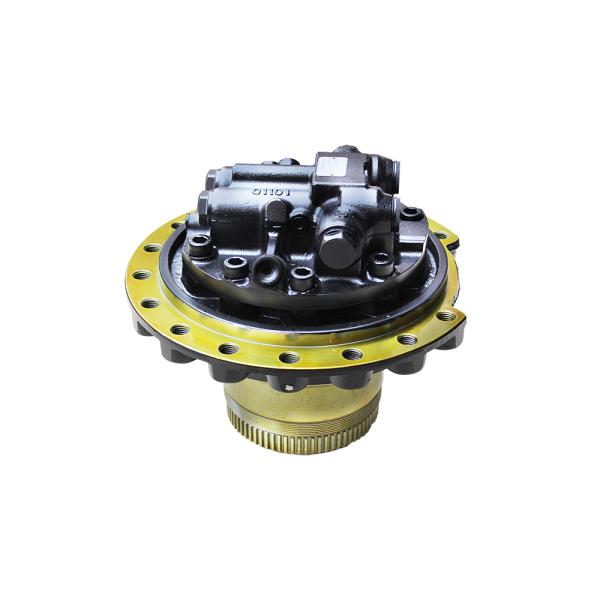

Hyundai R320-7 Final Drive Gearbox Assy 9131678 9257254

Hitachi excavator HMGF40FA ZX200-3 ZX200 final drive gearbox 9257254 travel motor assy

The excavatortravel motor assembly is a critical component of the machine’s chassis system, responsible for supporting the entire weight and providing mobility. It typically consists of tracks, sprockets, idlers, rollers (carrier and track), and travel motors. The design of the undercarriage directly impacts the excavator’s stability, traction, and operational efficiency. A high-quality undercarriage ensures smooth movement across rough terrain, minimizes slippage and wear, and offers excellent durability for demanding applications in mining, construction, and agriculture.

PRODUCT DESCRIPTION
Model: ZX200 ZX200-3	Ategory: Final Drive Gearbox
part number: 9257254 HMGF40FA 9131678 9257254 1014547 4198783	Place of Origin:Other Country
Condition: Original & Oem	Warranty: 12 months
MOQ: 1 pcs	Production Capacity: 1000pcs /Month
Standard or Nonstandard: Standard	Payment Term: L/C,T/T, Tradeassurance
Delivery Time: 3~5 days (depend on order)	Means of Transport: By Sea, Air or DHL
Guarantee: We will check and send detailed pictures to buyers for confirmation

We could supply the travel motor , also the inner spare parts as below model:

List of spare parts

#	Part No	Part Name	Qty.	Price request
	9120000	MOTOR; OIL	1
	(9131678)	MOTOR; OIL
02	1014547	. HOUSING
04	2026713	. DISC; DRIVING
06	4198783	. BRG.; ROL.
07	4198998	. BRG.; ROL.
08	4222980	. SPACER
09	4178173	. NUT; BRG.
11	4260561	. SEAL; OIL	1
12	4116290	. RING; RETAINING	1
14	2034880	. ROTOR	1
17	8050658	. PISTON	7
19	3064069	. SHAFT; CENTER	1
20	4179181	. SPRING; COMPRES.	1
21	4198956	. PIN	1
22	4234229	. RING; RETAINING
24	3037401	. PLATE; FRICTION
25	3032432	. PLATE
26	4246784	. SPACER	1
28	3047473	. PISTON	1
29	4232766	. D-RING	1
30	4232767	. D-RING	1
31	3047472	. SPRING; DISC	1
33	4248871	. O-RING	1
34	4506415	. O-RING	1
37	9119999	. VALVE; BRAKE	1
37	(9131604)	. VALVE; BRAKE
38	M341650	. BOLT; SOCKET
40	3064074	. PLATE	1
41	4266256	. PIN; KNOCK	2
45	2034875	. VALVE	1
46	4234628	. BUSHING	1
48	3052403	. LINK	1
49	4255238	. PLUG	2
51	4262561	. BOLT; REAMER	1
53	9101386	. PISTON; SERVO	1
55	4260308	. RING; PISTON	2
56	4275286	. COVER	1
57	4265579	. O-RING	1
58	M341225	. BOLT; SOCKET	4
63	9134112	. PLUG	1
63A	4506418	.. O-RING	1
64	9134109	. PLUG	1
64A	4506408	.. O-RING	1
